TMB PowerPAR HMI 575W

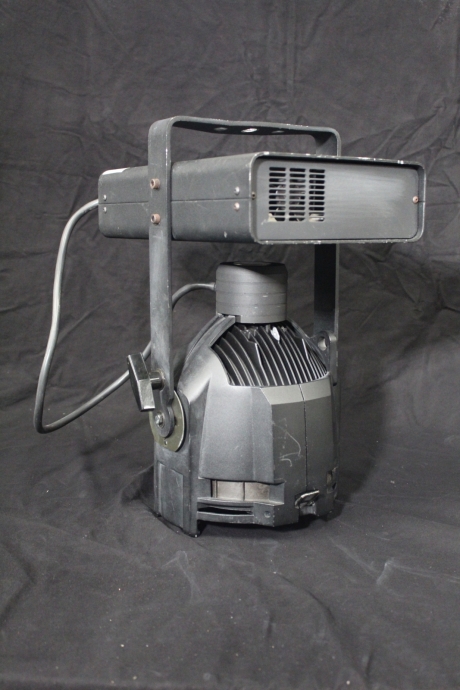

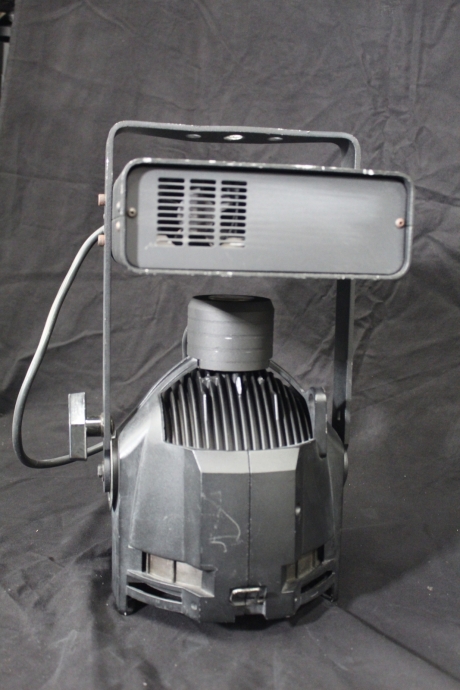

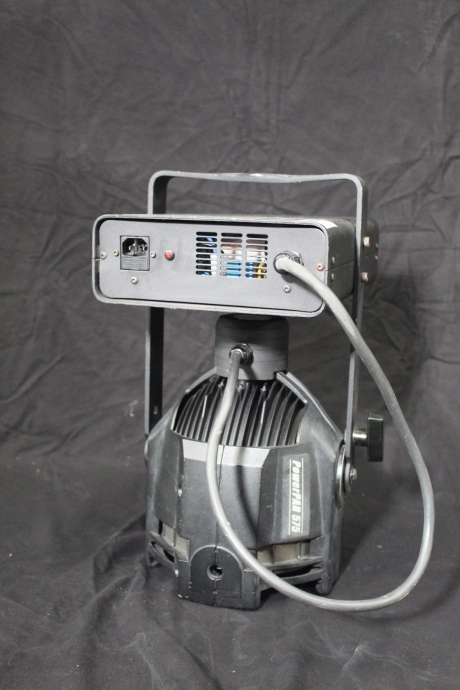

These TMB PowerPAR HMI fixtures show signs of wear but are in good working condition.

A 575w high intensity discharge lamp in a modified ETC Source Four PAR body. Extremely bright, daylight output in a convenient, attractive package. The output of an HMI fixture with the field quality and versatility of the Source Four PAR.

Daylight HMI Output for Stage and Location Work

The TMB PowerPAR HMI 575W is built for applications that need high punch and a daylight look, such as stage washes, high-output key or fill, and matching daylight-balanced sources in mixed-light environments. Depending on the lamp installed, it delivers a daylight color temperature of 7200 K (MSR575/2 or HSR575/2) or 6000 K (MSD575 or HSD575), helping you stay closer to natural-light color rendering without relying on heavy correction.

Optics and Beam Control

The optical system uses a parabolic reflector with a faceted surface, paired with interchangeable beam shaping lenses. This makes it practical for tailoring the beam for different throw distances and coverage needs while keeping the familiar PAR-style workflow.

Power, Cooling, and Rigging Details

An electronic switch-mode ballast with autosensing 90-265V AC input (47-65 Hz) supports touring and venue power variations, with a 0.99 auto-correcting power factor and 690 VA power consumption (3A @ 230V). The fixture combines convection cooling at the lamphouse with fan cooling for the ballast. It is rated IP20, supports unrestricted operating angles, and includes a 12.5 mm hole on top of the yoke for clamp mounting. Maximum surface temperature is 170 C and maximum ambient temperature is 35 C, with a matte black finish suited to stage environments.

Lamp Type Compatibility

The light source is a 575W single ended metal halide lamp with a GX9,5 base and LCL=65mm. Applicable lamps include MSR575/2, HSR575/2, MSD575 and HSD575.
