DADCO 400A 6-Way Socapex Distro
Description
These DADCO 400A 6-Way Socapex Distros show minor cosmetic wear but are in good working condition.
Designed for professional production power distribution, this 400A Socapex distro takes a 120/208V AC 3-phase input and provides multiple 120V outputs for feeding Socapex breakouts and small utility loads. Feed-thru Cam type connectors support pass-through power, making it easier to integrate into a larger temporary power chain on stages, studios, and event rigs.

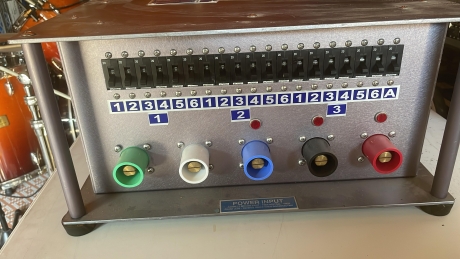

Power Input and Feed-Through
The unit is rated at 400 amp per leg and accepts 120/208 Volt AC 3Ø input. Feed thru Cam type connectors allow you to continue the run to additional distribution where needed, helping reduce repatching and keep setups organized.

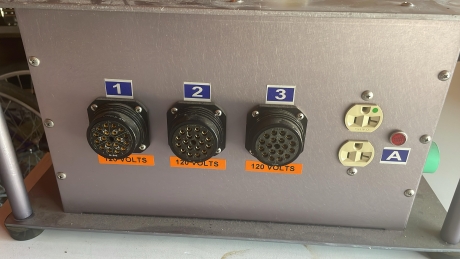

Output Options for Rigging and Utility Loads
For multi-circuit distribution, it provides (6) 6 circuit Socapex outlets at 120V, well suited for connecting standard Socapex-compatible cabling and downstream breakouts. It also includes (2) 20 amp duplex outlets at 120V for convenient access to small ancillary equipment.
Physical Specs
- Dimensions: 20" x 20" x 10"
- Weight: 65 lbs.
Additional Details
- Input: 120/208 Volt AC 3Ø; Feed Thru Cam Type Connectors; Rated at 400 Amp Per Leg
- Output: (6) 6 Circuit Socapex Outlets, 120 V; (2) 20 Amp Duplex Outlets, 120 V
- Dimensions: 20" x 20" x 10"
- Weight: 65 lbs.
- (1) 400A 6-Way Socapex Distro
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Los Angeles, CA, USA
