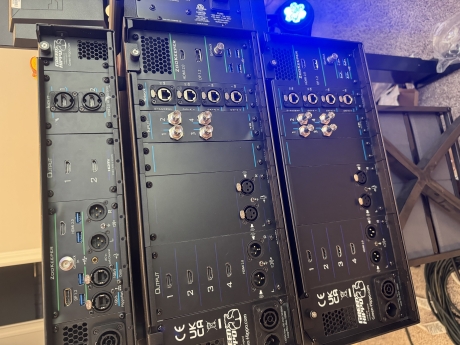

Green Hippo Hippotizer Boreal+ MK2 HDMI
Description
The Green Hippo Hippotizer Boreal+ MK2 HDMI is a 4RU rental and touring media server built to run demanding live events, medium-sized generative projects, and 3D visualization workflows with reliable real-time control and flexible multi-output configuration.
These Green Hippo Hippotizer Boreal+ MK2 units show minor wear and are in like new condition.
Built for Rental, Touring, and Live Playback
Boreal+MK2 is a practical all-around Hippotizer for show environments where you need responsive playback, fast media handling, and predictable output behavior. Hippotizer V4 supports real-time playback control of attributes, plus flexible output mapping for complex stage, LED, and projection layouts.
Outputs, Mapping, and Show Control
With 4x HDMI production outputs (HDMI 2.0 supported), the Boreal+ MK2 HDMI is designed for multi-screen or multi-processor systems. Hippotizer’s output management provides configuration flexibility, while SHAPE 3D Mapping delivers a complete tool set for projection mapping workflows. For pixel-based lighting and large point counts, PixelMapper makes it easier to map many thousand light points effectively.
Networking and Multi-Unit Operation
For scalable systems, HippoNet enables control of multiple units from a single ZooKeeper. The server includes an integrated media management system for fast ingest and organization. Networking includes 2x 1Gb ports and 2x 10Gb ports (10Gb/s network by default) to support higher-bandwidth media pipelines and connected show control infrastructure.
Performance and Playback Capacity
Designed for high-throughput show playback, this unit supports uncompressed playback and is rated for 20 concurrent 4K layers. It includes 25,000 Notchmarks and supports FlexRes Codec, a family of codecs built into every Hippotizer V4 and V4+.
Connectivity, Sync, and Audio I/O
Genlock is supported for synchronization, and software EDID emulation is supported (hardware EDID emulation: HDMI yes, DP no). Audio connections include balanced stereo XLR in and out, with LTC over the audio input supported for timecode-driven workflows.
Hardware, Power, and Physical Specs
- CPU: 8 cores (16 threads), 3.8 GHz
- Memory: 32GB DDR4-3200
- Storage: 500GB SSD OS drive, 4TB media drive (5,000 MB/s)
- USB: Rear 4 x USB3 Type-A, front 2 x USB 3.1 Type-A (5Gb/s)
- Power: Neutrik True1 input, True1 power loop (1000W max), 100-250V 50/60Hz
- Max power consumption: 1000VA; max heat dissipation: 3,000 btu/hr
- Rack size: 4RU; mounting via front rack rails
- Installed depth: 630mm (660 w/ ears); installed width: 425mm (480 w/ ears)
- Installed weight: 27 kgs
Additional Details
| Ships From: | Roebuck, SC, USA |
| Manufacturer: | Green Hippo |
| Condition: | Like New |
| Item #: | 60569 | Brokered |
| Tags: | Pro video, Media servers |
- 4x HDMI
- 25,000 Notchmarks
- 10Gb/s Network by default
- USB 3.1 (5Gb/s) on front USB Ports
- FlexRes Codec: FlexRes is a family of codecs built into every Hippotizer V4 & V4+.
- HippoNet: Control multiple units from a single ZooKeeper with HippoNet
- Media Management: Each unit includes an integrated media management system. Adding media is easy and fast.
- Output Mapping: Hippotizer’s output management system offers complete flexibility in system configuration.
- PixelMapper: PixelMapper is a feature rich tool capable of mapping many thousand light points easily and effectively
- Real-time Playback: Hippotizer V4 offers real-time control of any attribute.
- SHAPE 3D Mapping: SHAPE is a complete 3D projection mapping tool set
- Output Type: HDMI 2.0 or DP 1.2
- Production Outputs: 4
- Genlock: Yes
- Software EDID Emulation: Yes
- Hardware EDID Emulation: HDMI - Yes / DP - No
- Mixes: 16
- Layers per mix: 16
- ViewPorts: Unlimited
- Uncompressed Playback: Supported
- 1Gb Network: 2
- 10Gb Network: 2
- Audio Out: Balanced Stereo XLR
- Audio In: Balanced Stereo XLR
- LTC over Audio Input: Yes
- Rear USB Ports (Type-A): 4 x USB3
- Front USB Ports (Type-A): 2 x USB 3.1
- Power Input: Neutrik True1
- Power Loop: True1 – 1000W Max
- Size (Rack Units): 4
- Installed Depth: 630mm (660 w/Ears)
- Installed Width: 425mm (480 w/ Ears)
- Installed Weight: 27 Kgs
- Mounting: Front Rack Rails
- Voltage: 100-250V 50/60Hz
- Power Consumption (Max): 1000VA
- Heat Dissipation (Max): 3,000 btu/hr
- CPU Cores / Threads: 8(16)
- CPU Speed: 3.8 GHz
- Memory: 32GB
- Memory Type: DDR4-3200
- OS Drive: 500GB SSD
- Media Drive Size: 4TB
- Media Drive Speed: 5,000 MB/s
- Concurrent 4K Layers: 20
- Notch Marks: 25,000
- (1) Hippotizer Boreal+ MK2 HDMI
