Thor Edge 3.9i LED Video Wall Package

This listing is for a Thor Edge 3.9i LED Video Wall Package. These items show signs of wear but are in good working condition.

Included in this package are:

• (192) Edge 3.9i NovaStar, 500 x 1000 mm

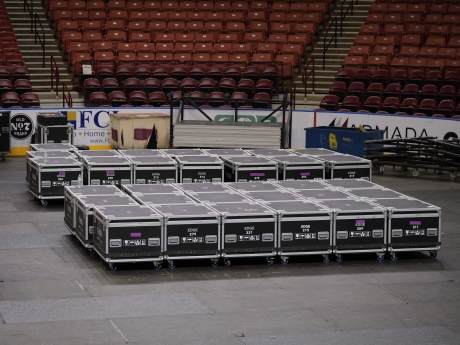

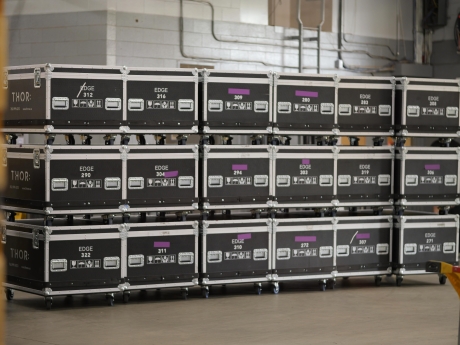

• Road Cases
• Rigging Hardware
• Power & Data Cables
• Spare Panels
• Spare Modules
• Spare Shaders

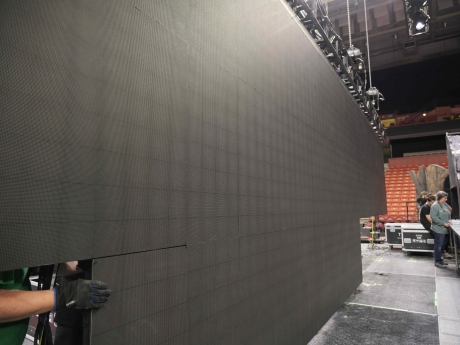

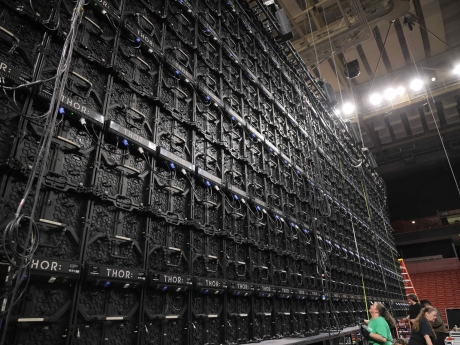

The Thor Edge 3.9i LED Video Wall Package is a modular LED wall solution designed for ground-stacked or flown builds in live events, houses of worship, corporate staging, and broadcast environments. With a 3.9mm pixel pitch and 3,840+ Hz refresh rate, the EDGE series delivers clean, distraction-free on-camera performance while keeping setup fast and straightforward.

Built for Live and Broadcast Workflows

EDGE panels are designed for quick deployment and reliable performance, whether you are building a temporary event wall or a repeatable touring configuration. The 1,250 nits calibrated brightness helps maintain image clarity under stage lighting, and the 140° x 140° viewing angle supports wider audience coverage without major color or contrast shifts. For typical viewing comfort at this pitch, the closest recommended viewer distance is 18FT / 5M.

Control and Serviceability

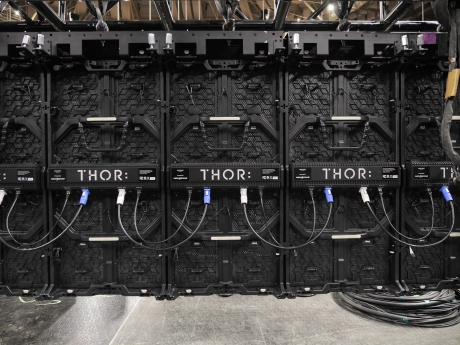

This package uses a NovaStar A5s Plus receiving card for integration into common LED processing and control systems. Panels support front / rear serviceability to simplify maintenance in both ground-stacked and flown installations, and the LED system is built around SMD 2020 gold wire modules with an MBI IC with S-PWM driver design for stable dimming and smooth performance.

Technical Highlights

• Driving method: 1/16 scan, 14-bit grayscale
• Pixel configuration: 128 x 256 (w x h), 32,768
• Chassis: Straight
• Operating temperature: -30° to 50° C
• Panel dimensions: 500 x 1000 x 88mm (19.7” x 39.37” x 3.5")
• Weight: 14.5 kg (32 lbs) per panel
