Elation FUZE PAR Z120 IP
Description

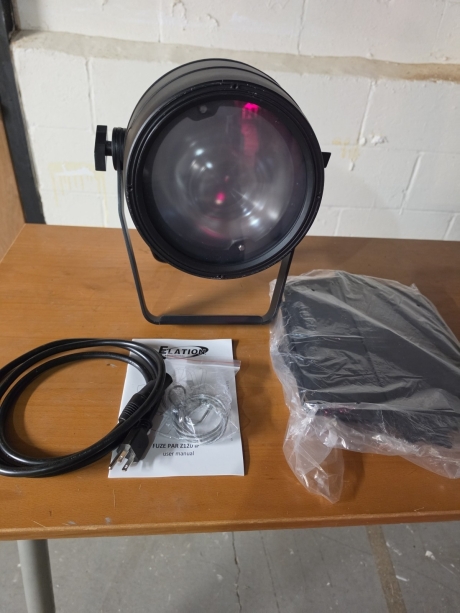

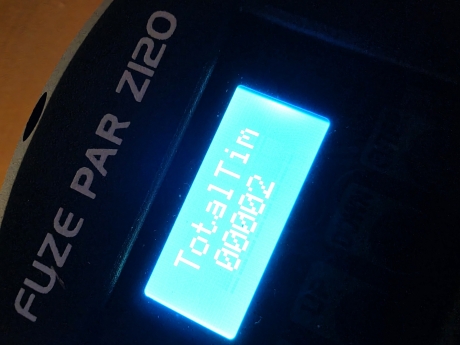

This Elation FUZE PAR Z120 IP was used for demo purposes and has about 2 hours of use. It shows minor wear but is in like new condition.
The IP65 rated Elation FUZE PAR Z120 IP is a single source, silent operating PAR luminaire designed for reliable indoor or outdoor use where weather resistance and consistent output matter. Powered by a 120W Quad Color RGBW COB LED, it delivers smooth RGBW color mixing for stage wash, architectural accents, event uplighting, and broadcast-friendly applications.
Weather-Ready Output With Motorized Zoom

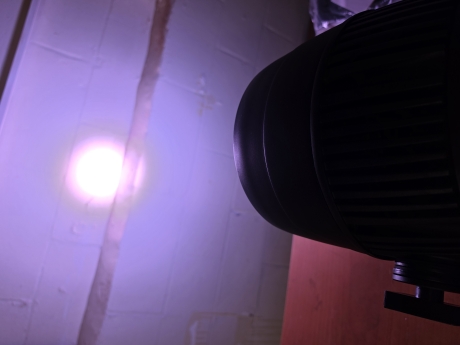

With a 7° to 55° motorized zoom, the FUZE PAR Z120 IP quickly shifts from a tight, punchy beam to a wide wash without changing lenses. Output is specified at 9,112 LUX (847 FC) at 9.8 ft (3 m) in the 7° setting (full on), and 428 LUX (40 FC) at 9.8 ft (3 m) in the 55° setting (full on), making it suitable for both throw and coverage-focused setups.
Control and Integration
The fixture supports DMX and RDM (Remote Device Management) for streamlined addressing and status monitoring in installed or touring systems. It offers 12 DMX channel modes (13 total channels) and provides onboard control via an LCD menu display with a 4 touch button control panel. Connection options include IP rated 5pin XLR for DMX and powerCON TRUE1 in/out for power, plus multiple unit power linking for cleaner rigging and faster deployment.
Designed for Production Workflows
For live events and camera-facing environments, the FUZE PAR Z120 IP includes flicker free operation for broadcast TV and FILM, along with electronic strobe, dimming, and selectable variable dimming curves for smoother fades on cue. It also provides 64 color presets and 14 unique color macros for quick looks when programming time is limited.
Physical Specs and Ratings
- IP65 rated, approvals/ratings: CE | RoHs | IP65
- Dual adjustable yokes
- Multi-voltage universal auto switching power supply: AC 110-240V, 50/60Hz
- 158W max power consumption
- Operating temperature: 5 F to 113 F (-15 C to 45 C)
- Average lamp life: 100,000 hours
- Dimensions (L x W x H): 11.69 in (283.7 mm) x 14.05 in (356.8 mm) x 14.14 in (359.2 mm)
- Weight: 19 lbs (8.6 kg)
Additional Details
- IP65 Rated
- 120W RGBW COB LED Par Luminaire
- 7 to 55 degrees Motorized Zoom Range
- Silent Operation
- RGBW Color Mixing
- Dual Adjustable Yokes
- Multiple Unit Power Linking
- Flicker Free Operation for Broadcast TV and FILM
- 120W RGBW COB LED
- 100,000 Hour Average Lamp Life
- 9,112 LUX 847 FC @9.8' (3m) (7 degrees Full ON)
- 428 LUX 40 FC @9.8' (3m) (55 degrees Full ON)
- RGBW Color Mixing
- 7 - 55 degree Beam Zoom Range
- Electronic Strobe, Dimming and Variable Dimming Curves
- 64 Color Presets and 14 Unique Color Macros
- 12 DMX Channel Modes (13 Total Channels)
- 4 Button Touch Control Panel and LCD Menu Display
- RDM (Remote Device Management)

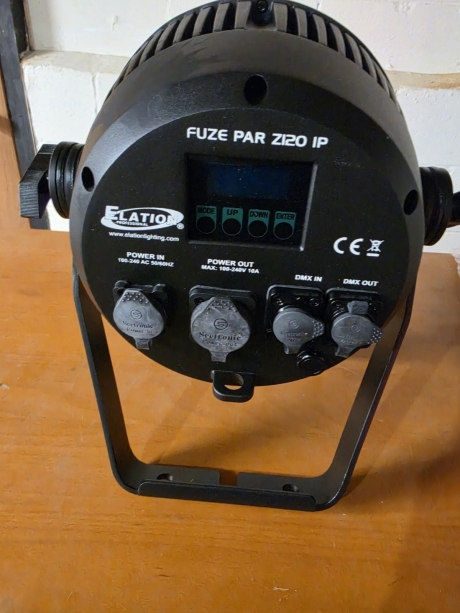

- IP Rated 5pin DMX and powerCON TRUE1 In/Out
- Length: 11.69" (283.7mm)
- Width: 14.05" (356.8mm)
- Vertical Height: 14.14" (359.2mm)
- Weight: 19 lbs. (8.6 kg)
- AC 110-240V - 50/60Hz
- 158W Max Power Consumption
- Multiple Unit Power Linking
- 5 F to 113 F (-15 C to 45 C)
- APPROVALS / RATINGS: CE | RoHs | IP65
- (1) FUZE PAR Z120 IP
- (1) Power Cable
- (1) Safety Cable
- (1) Barn Door
A member from our team will reach out to the seller to determine the shipping cost and will contact you with the total cost for your approval. Payment will only be authorized, not processed, until the shipping cost is approved by you. Please note that if the item is being shipped to a country that is outside of the "Ships from" country, you will be responsible for any taxes, duties, or fees associated with your purchase.
Ships from: Long Valley, NJ, USA
