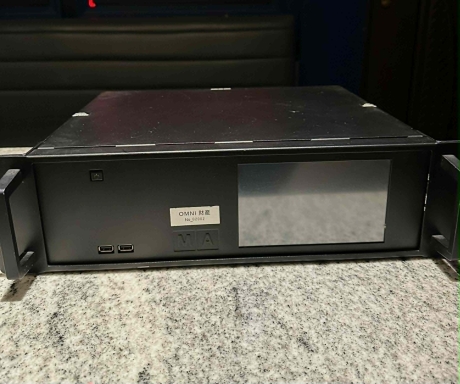

MA Lighting NPU Network Processing Unit

Ships from outside of the United States

This MA Lighting NPU Network Processing Unit shows signs of wear but is in good working condition.

The MA Lighting NPU Network Processing Unit (8GB) unites calculation power in the network and offers the same performance as the grandMA2 consoles. The MA NPU offers and handles 4,096 parameters. With an easy to read touchscreen the MA NPU allows intuitive use and easy access to all the important information. 8 x DMX XLR 5-pin connectors on the rear side of the MA NPU allow a most flexible use within the network environment.

What It Does in a grandMA2 Network

The MA NPU is the link between Ethernet and DMX controlled devices, adding processing power and parameters to the MA system. For decentralized DMX networks, the MA NPU converts incoming Ethernet data into DMX data. The converted data are transmitted via 8 independent DMX connectors, which can be configured as DMX inputs or outputs. This is especially useful when you need to place DMX I/O closer to the rig while keeping control and processing centralized over the network.

System Sharing and Redundant Workflows

Within a network, several grandMA2 consoles share the available MA NPU devices. For parameter expansion the MA NPU shall be located in a centralized position, whereas MA xPort Nodes are used to distribute and output DMX data. This allows DMX devices being used by several consoles together, and it provides a redundant mode of operation without additional components such as DMX mergers.

Key Features and Specifications

• Real-time calculation for 65,536 parameters with a grandMA2 system (equivalent to 256 DMX universes)
• 4,096 HTP-/LTP-parameters
• 1 Internal command screen
• 1 Ethercon connector
• 4 USB 2.0 connectors
• grandMA series 1 compatibility mode
• Converts grandMA2 onPC to full featured lighting control system
• Dimensions: 485 x 332 x 126mm / 19 x 13 x 5inch
• Weight: 9kg / 19.9lbs
