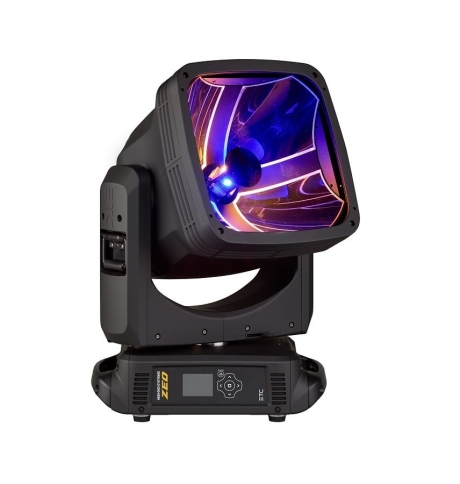

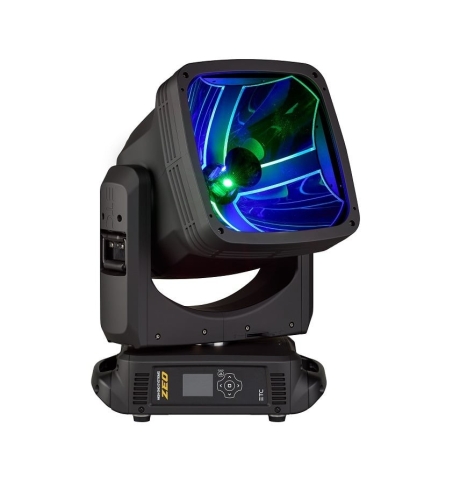

High End Systems Zeo
Description
These fixtures are from High End Systems and include a 90 Day Warranty.

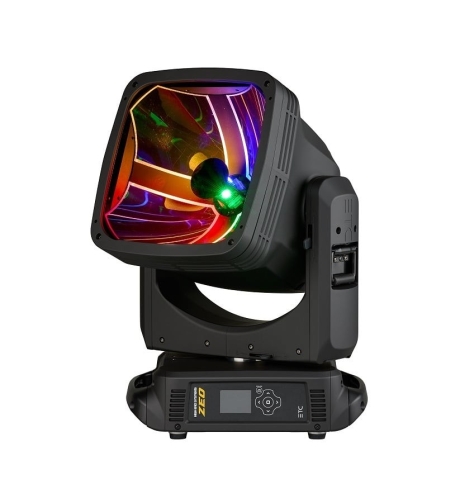

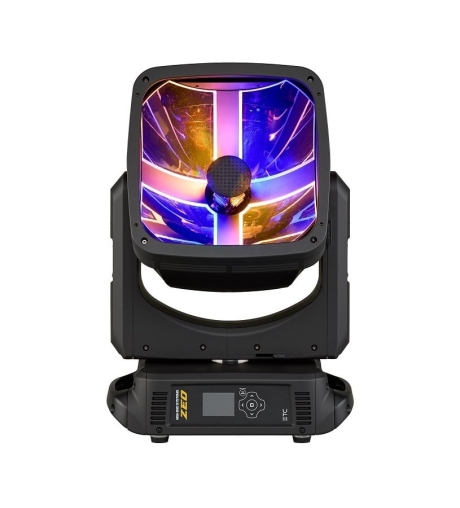

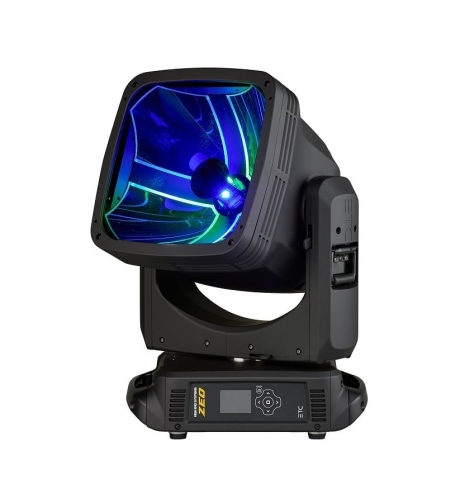

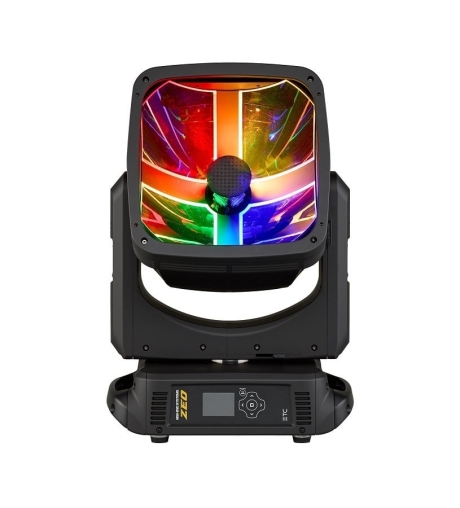

Bring a totally unique look to your show with the High End Systems Zeo, an RGBW effects fixture built to deliver bold beams, wide washes, and punchy strobe or blinder looks from the same unit. Zeo’s distinctive design features a center LED monolith surrounded by four defined reflectors, letting you run it as a bright, unified wash or separate the output into distinct beams for layered aerial effects.
Distinctive optical system with programmable pixels
At the core of Zeo are four 300 W RGBW COB LED cells (1,200 W total) with individual cell control, so you can build chases, symmetrical looks, or asymmetric accents without adding more fixtures. The patented Quad Reflector system works with HaloGraphic Pixel Definition technology to keep beam and pixel looks crisp and intentional, whether you are creating tight eye-candy patterns or filling the stage with color.
Brightness, color, and zoom flexibility for real-world shows
Zeo delivers output exceeding 30,000 lumens and includes Red, Green, Blue, White, plus CTO for a wide range of tones. The adjustable color temperature range from 2,200 K to 10,000 K helps you match warm tungsten looks, cooler camera-friendly whites, or blend with other LED rigs.
A motorized Light Concentration system lets you shape the beam from 13° to 55°, making it practical as a narrow beam effect, a mid-wide wash, or a big look for strobes and blinders. Flicker control options at 2.4 kHz and 16 kHz support smoother results on camera.
Fast movement and show-ready programming tools
With 540° pan and 205° tilt (up to 360° in 2.39 s and 180° in 1.92 s), Zeo can keep up with fast cueing and energetic movement looks. Built-in strobe and inclusive macros with separate background levels make it easy to produce polished effects at multiple programming skill levels, from quick setups to detailed pixel-based sequences.
Build and physical details
Zeo uses a steel and aluminum frame with molded plastic covers, is rated IP20 for indoor use, and measures 23.3 x 16.4 x 11.6 in (529 x 418 x 294 mm) at 20 kg (44 lb).
Additional Details
| Manufacturer: | High End |
| Condition: | Good |
| Model: | 2593A1000-B |
| Item #: | 62105 | Brokered |
| Tags: | Moving lights, Leds, B-stock/demo gear, High end, Led moving lights |
- LED monolith with four 300 W RGBW LED cells
- Individual cell control
- Fixture output exceeding 30,000 lumens
- Patented Quad Reflector system
- HaloGraphic Pixel Definition technology
- Motorized Light Concentration system
- Strobe and inclusive macros with separate background levels to enhance shows at all programming levels
- Engine: Quantity four, each 300 W RGBW COB
- LED Details: 1,200 W
- Max Integrating Sphere Lumens: 30,000 lumens
- LPW: 25
- LED Life: 50,000 hours
- Native CCT: None
- Color Mixing: Red, Green, Blue, White, CTO
- Color Temperature: 2,200 K to 10,000 K
- Light Concentration: Control Motorized, beam from 13° to 55°
- Aperture Size: 285 x 285 mm
- Flicker Control/Hz Range: 2.4 kHz and 16 kHz
- Pan and Tilt Range: 540° pan, 205° tilt
- Max Pan/Tilt Speed: 360° in 2.39 s/180° in 1.92 s
- Materials: Steel and aluminum frame with molded plastic covers
- IP Rating: IP20
- Dimensions: 23.3 x 16.4 x 11.6" / 529 x 418 x 294 mm
- Weight: 20 kg (44 lb)
- (1) Zeo
- (1) Molded Insert
