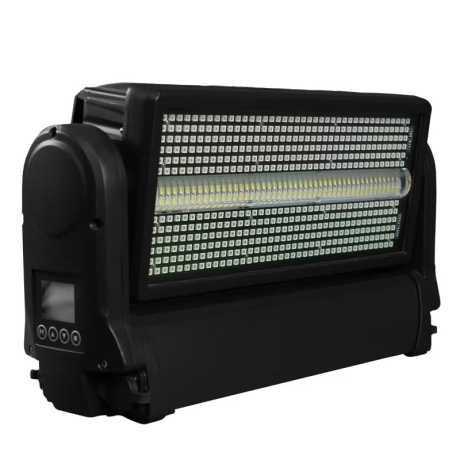

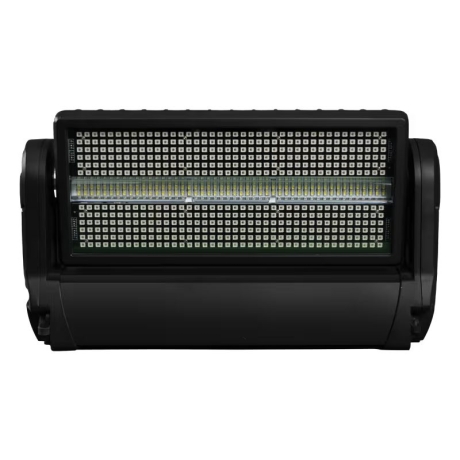

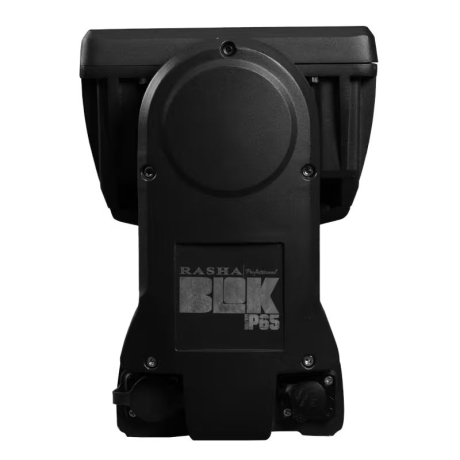

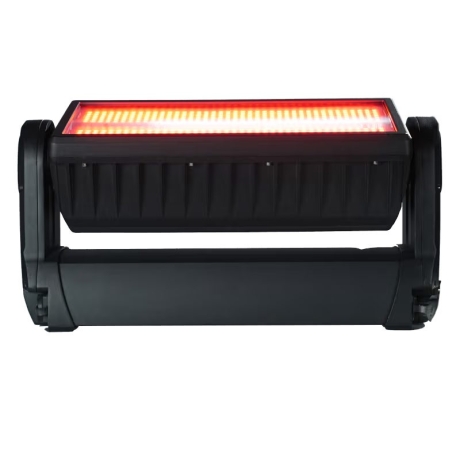

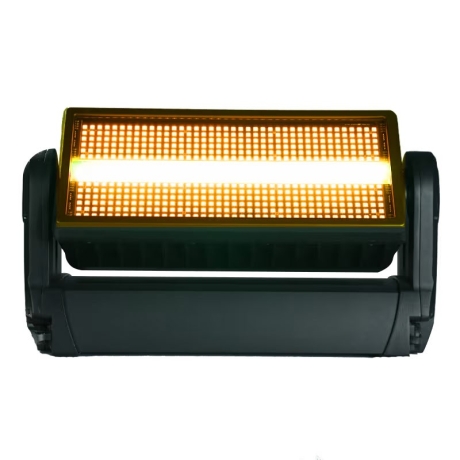

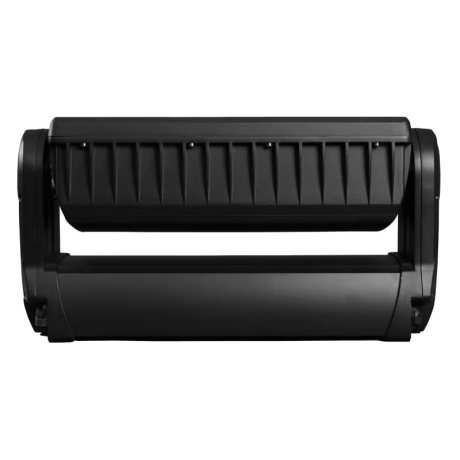

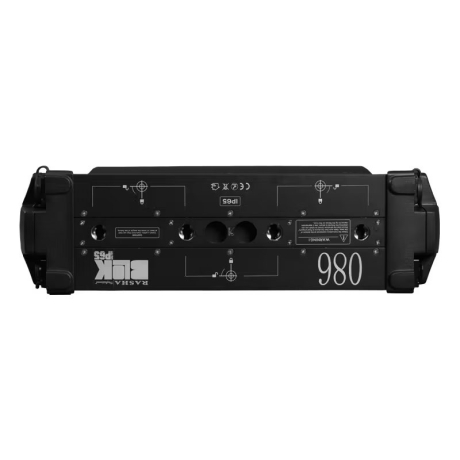

NEW Rasha Blok IP65
Description
The Rasha Blok IP65 is a high-output moving head strobe designed for touring productions, outdoor stages, and architectural applications where weather resistance and punchy impact matter. With 480 RGB LEDs and 144 white LEDs, it produces up to 150,000 lumens of bright, even coverage that reads clearly in large venues.
High-impact output with detailed zoning control
For programming flexibility, the Blok IP65 combines 8 pixel-mappable RGB zones with 4 independent white strobe segments, letting you build layered looks, segmented hits, and rhythmic chases across the face of the fixture. Multiple chase patterns and strobe presets provide fast access to energetic effects, while DMX control supports precise timing and intensity matching across a rig.
Built for outdoor rigs and demanding environments
Constructed with a sealed aluminum IP65-rated housing, the fixture is engineered to perform reliably in rain and dust, and across temperatures from −22°F to 122°F (−30°C to 50°C). Active, temperature-controlled fans help maintain consistent performance in challenging conditions, supporting dependable use on festivals, permanent installs, and exposed truss positions.
Movement and integration for professional systems
Smooth pan and tilt movement supports both sweeping accents and precise directional hits, making the Blok IP65 adaptable to a wide range of rigging styles and stage layouts. DMX and RDM compatibility streamline addressing, monitoring, and integration into professional lighting systems, and multiple DMX modes accommodate different workflow needs.
Additional Details
| Ships From: | United States |
| Manufacturer: | Rasha |
| Condition: | Brand New |
| Model: | RP-BLOK-IP65-BLK |
| Item #: | 62593 |
| Tags: | Moving lights, Leds, Effects/efx, Strobes, Other, Outdoor ip rated, Rgb, Strobe |
- IP65-rated sealed aluminum housing for reliable indoor/outdoor use.
- 144 White + 480 RGB LEDs delivering up to 150,000 lumens with consistent color and no hotspots.
- 8 pixel-mappable RGB zones and 4 white strobe segments for dynamic effects.
- 6 strobe presets and multiple built-in chase and color macros for creative control.
- DMX/RDM compatible for seamless integration.
- Operates from -22°F to 122°F (-30°C to 50°C) for tough environments.
- Strobe Tube Light Source: (144) 5 W Cool-white LEDs, 50,000-hour Life Expectancy
- RGB Panel Light Source: (480) 0.5 W RGB LEDs, 50,000-hour Life Expectancy
- Color Temperature @ Full: 10,100 K
- Strobe Tube Illuminance: 60,000 Lux @ 1 M
- RGB Panel Illuminance: 7,600 Lux @ 1 M
- Illuminance @ Full: 2,070 Lux @ 5 M
- Front Lens Diameter (L × W): 5.59 × 14.17 In (142 × 360 Mm)
- Strobe Tube @ Full: 8,500 K
- Lumens — Source: 150,000 Lm
- CRI(Ra): 87.5
- Dimming Resolution: 8-bit
- Tilt Range: 185°
- Pan/Tilt Resolution: 16-bit
- Shutter/Strobe: Mechanical, Electronic, 0–25 Hz
- Strobe Tube Patterns: (6) Strobe Presets, 1–25 Hz Variable Speeds + Open
- RGB Panel Strobe Patterns: (6) Strobe Presets, 1–25 Hz Variable Speeds + Open
- Strobe Tube Chase Macros: (6) With Variable Speeds
- RGB Panel Chase Macros: (51) With Variable Speeds
- Color Macros: Color Macros For RGB Plate Patterns
- Background Color: Controlled With Fixture RGB Dimmer Channels
- Tube Pixel-Mappable LEDs: (4) LED Segment Control
- RGB Panel Pixel-Mappable LEDs: (8) 2×4 LED Segment Control
- Built-in Menu Programs: (3) Auto Programs With Variable Speeds
- Housing: Aluminum Die-cast
- Housing Color: Black
- Housing Finish: Matte Black
- Lens Type: Tempered Glass
- Pan/Tilt Lock Mechanism: No
- Base Type: Flat Base For Floor Mounting

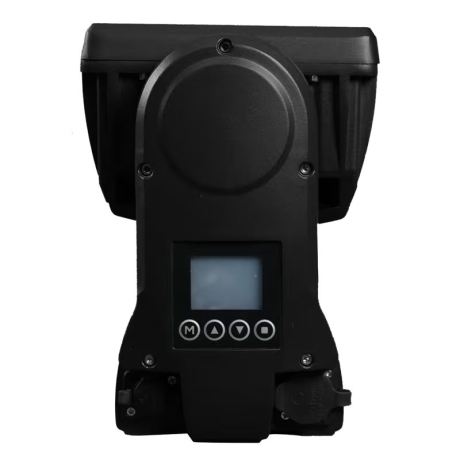

- Menu Display: 1.8 In Full-color LCD Menu Display
- Button Interface: 4-button Menu
- Input Voltage: 110–240 VAC, 50/60 Hz (auto-ranging)
- Max Power Consumption: 866 W, 7.3 A @ 120 V, 60 Hz
- Max Power Consumption: 866 W, 4.1 A @ 208 V, 60 Hz
- Idle Power Consumption: 26 W, 0.2 A @ 120 V, 60 Hz
- Idle Power Consumption: 26 W, 0.12 A @ 208 V, 60 Hz
- Power Factor: ≥ 0.98
- Breaker Recommendation: 20 A MCB (Miniature Circuit Breaker)
- Power Button: No Mechanical Power Switch
- Power Connections: IP65 Seetronic True1 Input & Output
- Data Connections: Seetronic IP65 5-pin XLR Input & Output
- Cooling System: Active, Temperature-controlled Fans
- Operating Temperature: −22°F To 122°F (−30°C To 50°C)
- Run Modes: DMX, Manual, Auto
- Control Protocol: DMX, RDM
- DMX Modes: 7-channel, 14-channel, 15-channel, 42-channel, 43-channel
- Dimensions (L × W × H): 18.9 × 9 × 9.5 in (482 × 178 × 243 mm)
- Weight: 27.56 lbs (12.5 kg)
- (1) Blok IP65
- (2) Omega Bracket
- (1) Edison to TRUE1 Cable
- (1) IP65 5-Pin DMX Cable
