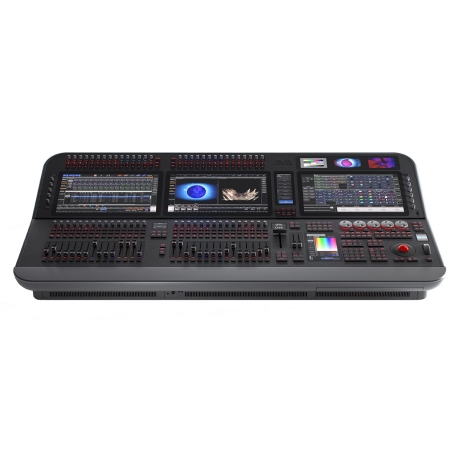

NEW Avolites Diamond 9-330 Console

The Avolites Diamond 9-330 Console is a professional lighting control console built for high-density playback, fast programming, and modern multi-screen workflows in live events, touring, theatre, and broadcast environments. With extensive motorised faders, touch-sensitive encoders, and multiple high-brightness touch displays, it is designed to keep complex shows responsive and readable under demanding stage lighting conditions.

Hands-on playback and programming control

The console is equipped with 30 + 2 motorised touch-sensitive Penny & Giles faders with designer fader caps, each paired with an 11-segment RGB LED level indicator and an RGB halo indicator for each playback. For parameter control and cue refinement, it adds 70 optical rotary touch sensitive playback encoders (with push function) and matching 11-segment RGB LED level indicators plus RGB halo indicators for each encoder. Tactile operation is supported by 180 C&K playback function buttons with positive haptics for timing, along with RGB-backlit programming buttons using short travel Cherry MX Low Profile switches.

Multi-screen layout for show control

For programming, playback visibility, and workspace management, the Diamond 9-330 provides 3 x 15.6” 1000nits 1920*1080 capacitive touchscreens with adjustable brightness. It also includes 3 x 4.3” 1000nits 800x480 preview touchscreens for media or workspaces, plus a softkey menu touchscreen. When your workflow demands even more screen real estate, it supports two additional HDMI 1920*1080 touchscreens.

Workflow tools for busking, timecoding, and precision moves

Independent paging for each playback section helps keep hands-on access organised across multiple pages. The console includes 5 custom RGB backlit optical attribute encoders, a dedicated level wheel (machined aluminium) with a colour LCD status screen, and a T-Bar with 5 control buttons and a colour LCD status screen for timing and manual transitions. A dual, motorised, touch-sensitive master cue list fader control with 9 buttons supports cue-based operation, while the 7” dual-touch high-brightness 800*1280 programming screen adds a focused programming area.

Integrated input and operator ergonomics

A full custom backlit QWERTY keyboard sits in a drawer, with keys identical to the program panel for consistent muscle memory. For positioning and navigation tasks, the console includes an X, Y, Z optical trackball. It also provides 21 backlit Macro / Executor keys, all screen-labelled, to support repeatable actions and quick access to show functions.

Dimensions and weight

• Unit Dimension, Screens Up (WxDxH): 1380 x 640 x 455 mm (54.3" x 25.2" x 17.9")
• Unit Dimension, Screens Down (WxDxH): 1380 x 705 x 240 mm (54.3" x 27.8" x 9.5")
• Weight: 68 kg (150 lbs)
