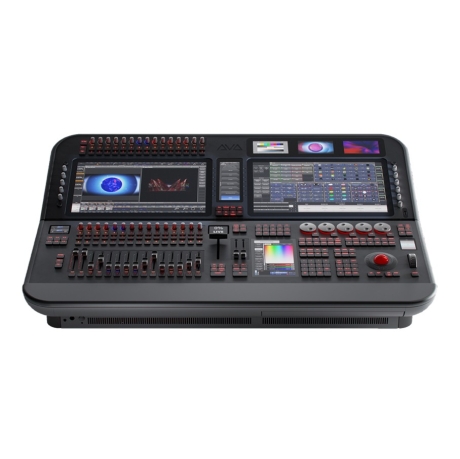

NEW Avolites Diamond 9-215 Console

The Avolites Diamond 9-215 Console is a professional lighting control console designed for demanding live productions, touring, and installed venues where fast programming, clear visual feedback, and hands-on playback control matter. Its multi-screen, multi-encoder surface is built to keep critical controls immediately accessible, while bright touch displays and RGB status indicators help you stay oriented in dark environments and high-pressure cueing situations.

Hands-on playback control and visual status feedback

The Diamond 9-215 is built around extensive, tactile control for playback and timing. It features 15 + 2 motorised touch-sensitive Penny & Giles faders (designer fader cap), each with an 11-segment RGB LED level indicator and an RGB halo indicator for each playback, making it easy to confirm levels and states at a glance.

For parameter adjustment and playback manipulation, the console includes 40 optical rotary touch sensitive playback encoders with push function (designer knob), plus an 11-segment RGB LED level indicator and RGB halo indicator alongside each encoder for immediate visual confirmation.

Programming interface designed for speed

To support quick navigation and accurate editing, the programming buttons are all RGB backlit and use short travel Cherry® MX Low Profile switches. You also get 90 C&K playback function buttons with positive haptics for timing (designer button cap), along with 5 custom RGB backlit optical attribute encoders for direct control of key attributes.

Dedicated hardware improves precision and reduces menu-diving, including an X, Y, Z optical trackball, a dedicated level wheel (machined aluminium) with a colour LCD status screen, and a T-Bar with 5 control buttons plus a colour LCD status screen. A dual, motorised, touch-sensitive, master cue list fader control with 9 buttons supports cue list operation with consistent, repeatable control.

Multi-touch display workflow with expandability

The surface includes 2 x 15.6” 1000nits 1920*1080 capacitive touchscreens with adjustable brightness for clear viewing under bright work lights, plus 3 x 4.3” 1000nits 800x480 preview touchscreens for media or workspaces. A softkey menu touchscreen and a 7” dual-touch high-brightness 800*1280 programming screen provide additional dedicated interaction points for efficient operation.

Playback organization is supported through independent paging for each playback section, and the console includes 21 backlit Macro / Executor keys that are all screen-labelled for clear identification. For larger setups, it supports two additional HDMI 1920*1080 touchscreens.

Integrated keyboard and console dimensions

A full custom backlit QWERTY keyboard in a drawer (keys identical to program panel) keeps text entry and command work close to the main programming area without requiring external peripherals.

• Dimensions (Screens Up): 995 x 640 x 455 mm (39.2" x 25.5" x 17.9")
• Dimensions (Screens Down): 995 x 705 x 240 mm (39.2" x 27.8" x 9.5")
• Weight: 54 kgs (120 lbs)
