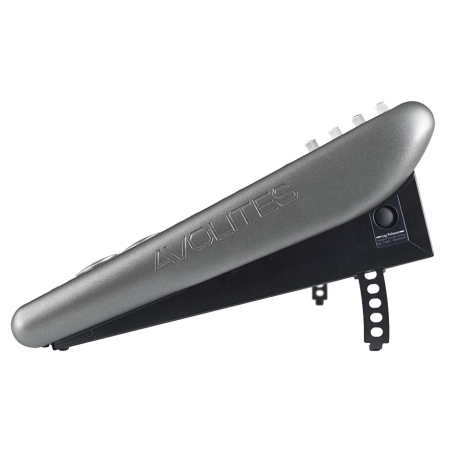

NEW Avolites Arena Console

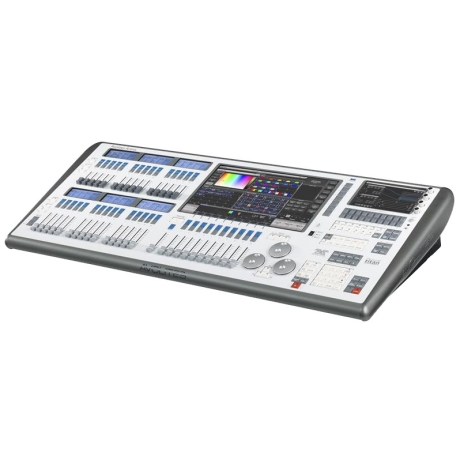

Available in white or black faceplate. Please select which version you'll like to purchase by clicking "Select Options."

The Avolites Arena Console is a professional lighting control console built on the Avolites Titan software platform, designed for fast, hands-on control of complex rigs in touring, theatre, and live event environments. With deep network output and a workflow centered on playbacks, touch control, and dedicated encoders, Arena is engineered for operators who need quick access to looks, cues, and busking tools without relying on external hardware.

Hands-on playback control for shows and busking

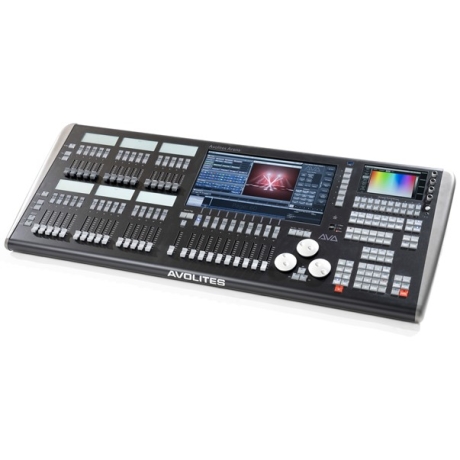

Arena provides 40 electronically-labelled playback faders for clear, at-a-glance identification of playbacks as your show evolves. A bank of 20 macro / executor buttons helps streamline repeat actions and live decisions, while 3 optical attribute encoders and 4 optical playback pots deliver responsive parameter control for attributes, timing, and on-the-fly adjustments.

Dual touchscreen workflow

A 15.6" main touch screen and a 7" secondary touchscreen support a multi-window Titan workflow, making it easier to keep key views (such as palettes, playbacks, and fixture control) available without constant page switching.

Network and DMX connectivity for modern rigs

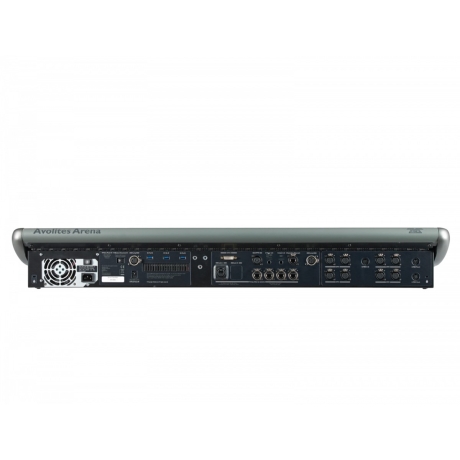

For network-based control, the console outputs 16 universes of ArtNet or S-ACN, with expansion available via Titan Net Processors for larger systems. Physical integration is equally straightforward with 8 physical DMX outputs on 5-pin XLR. A built-in 4-port managed gigabit network switch reduces the need for external switching, and Ethercon for all ethernet connections improves reliability in touring and temporary installs. An OpticalCon stage link output supports long-distance, robust stage connectivity.

Capacity and system scaling

The console supports 8,192 DMX channels per device and up to 32,768 max DMX channels per system, enabling larger multi-universe lighting systems when scaled appropriately within the Titan ecosystem.

Built for live production

An integrated UPS battery backup helps protect your show from brief power interruptions. The Arena Console measures 1072 x 428 x 150 mm and weighs 23 kgs. For transport, the flight case measures 1190 x 570 x 330 mm, with a total weight in flight case of 44 kgs.
