ADJ Jolt Panel FX2

These units are ADJ B-Stock and come with a 90 day manufacturer warranty.  All fixtures are cleaned and tested before leaving the building.

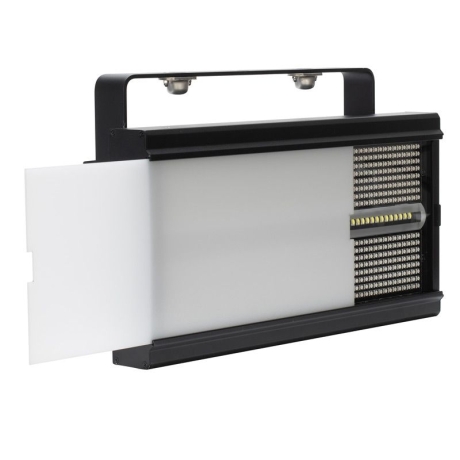

The ADJ Lighting Jolt Panel FX2 is an innovative multi-use strobe / wash / eye candy fixture designed for large stages, nightclubs, live events and touring. It is equipped with 800 x 0.5-Watt RGB SMD LEDs for color strobe, wash and eye candy effects, plus 48 x 5-Watt cool white SMD LEDs located in the center of the fixture to deliver a classic, traditional strobe look with substantial punch.

Both LED types are grouped into independent, controllable zones (6 white and 40 color), allowing you to build high-impact animated chase patterns, segmented hits, and pixel-style sweeps across the face of the panel. With a 73° beam angle and 111° field angle, the Jolt Panel FX2 can cover wide areas for wash applications while still producing aggressive strobe and eye candy looks.

Wireless DMX + Flexible Control

Building off the success of the original Jolt Panel FX, the Jolt Panel FX2 adds built-in ADJ Aria X2 wireless DMX (and it is also compatible with ADJ’s WiFLY EXR wireless DMX) to help simplify data distribution when running cable is impractical. For wired control, the rear panel provides locking 5-pin DMX in/out connections and locking power in/out sockets for clean, reliable daisy-chaining on indoor (IP20) systems. The fixture also supports RDM for streamlined addressing and configuration in compatible setups.

Creative Options for Designers

A front channel system allows light shaping filters to be easily and conveniently added to the fixture. These filters blur the pixel dots and give designers another practical way to tailor the look from show to show, from a more defined pixel aesthetic to a smoother, blended output.

Onboard tools are easily accessed via an OLED display with a 4-button menu, letting you adjust dimming modes and speed, select programs and macros, tune LED refresh rate and gamma settings, and set DMX address and channel modes. Multiple control personalities are available, with 10 DMX modes ranging from 6 to 141 channels, making it easy to choose a simple mode for quick setups or a higher-channel mode for detailed zoning and animation. Strobe, shutter and pulse effects are supported with a strobe range of 1Hz to 20Hz.

Deployment Details

The rear panel includes mounting holes to connect an omega bracket as an alternative to its variable angle bracket. Power is auto-sensing 100-240V, 50/60Hz, with max power consumption of 214W at 120V (208W at 230V). The fixture is fuse protected (T5A/250V glass fuse) and is rated for an average LED life of 50,000 hours.
