Elation Dartz 360
Description
These Elation Dartz 360 LED moving lights show signs of wear and tear, but are in good working condition. Omega brackets are included.
Sold as individual units.
The Elation Dartz 360 is a compact moving head beam luminaire built for tight, high-impact looks in touring rigs, event production, houses of worship, and broadcast environments. Its patent pending single source 50W RGB LED engine delivers a crisp 3° beam aperture with smooth color mixing, plus motorized focus for dialing in sharp aerial effects or more controlled beam presentation.
Precision movement for dynamic beam looks
Designed for fast, repeatable programming, the DARTZ 360 features fast and precise 16-bit continuous 360° pan and tilt rotation for fluid sweeps, continuous rotations, and tight position accuracy. Unlike typical discharge lamp beam fixtures, it requires no minimum safe project distance, making it suitable for close-throw stages, low-trim installations, and spaces where beam fixtures are often limited.
Gobos, prisms, frost, and effects control
For textured looks and mid-air effects, it includes 14 static-stamped metal gobos and both a 6-facet linear prism and 8-facet independent rotating prism. A 0-100% linear frost filter lets you soften the output for wash-like applications, while the high speed electronic shutter and strobe provide punchy hits and rapid effects. Electronic dimming with variable dimming curve modes helps match fades to different show styles.
Professional control and networking
The Dartz 360 supports DMX and RDM (Remote Device Management), plus Kling-Net, Art-NET, and sACN for modern networked lighting workflows. Elation’s E-FLY internal wireless DMX transceiver reduces cabling needs in temporary setups. Adjustable LED refresh rate and gamma brightness enable flicker free operation for TV and FILM.
Rig-ready build and dimensions

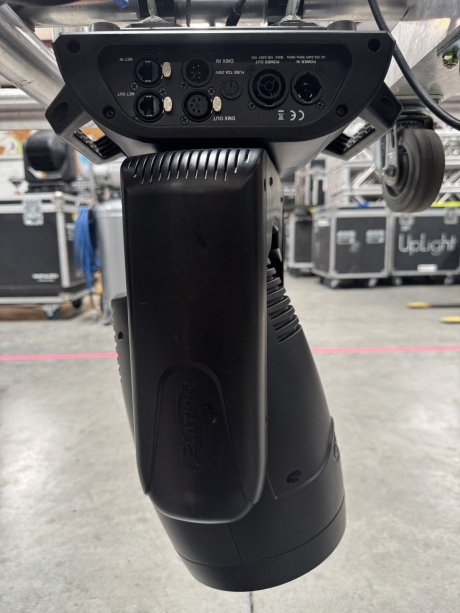

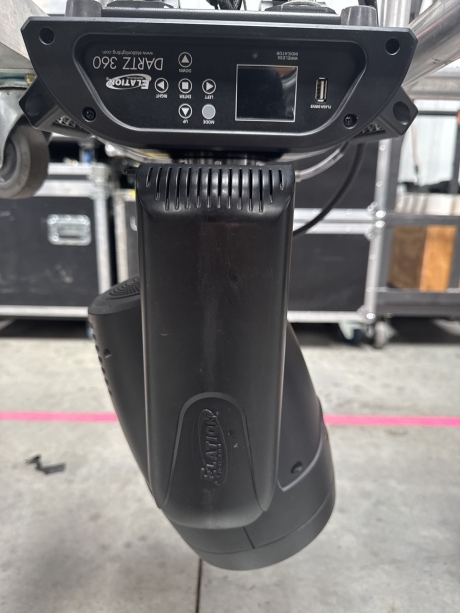

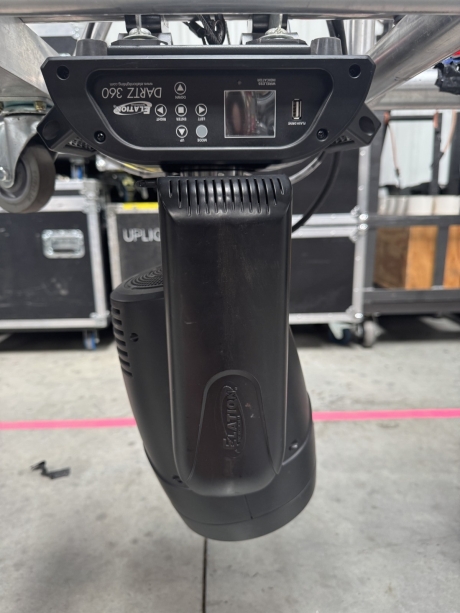

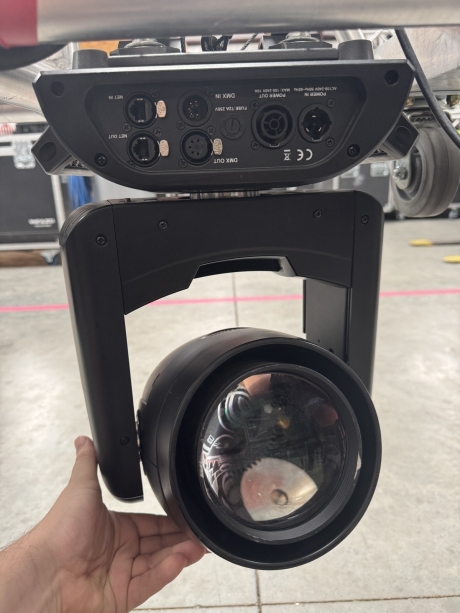

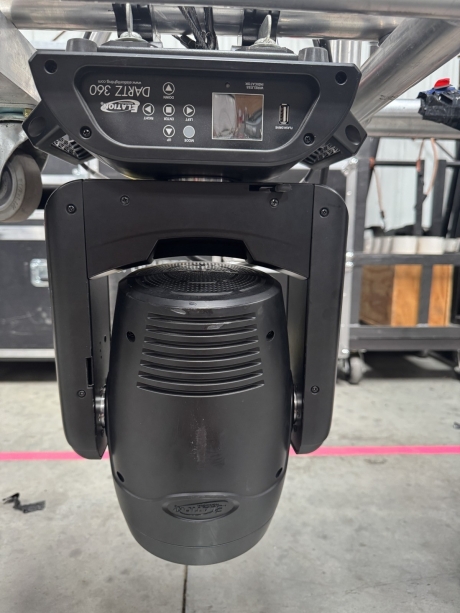

Connectivity includes 5pin XLR, RJ45 etherCON, and powerCON TRUE1 in/out, along with a full color 180° reversible menu display with a multi-button control panel and battery backup for display power. The fixture uses a multi-voltage universal auto switching power supply (100-240v). Physical specs: length 11.2” (284.15mm), width 7.7” (195.97mm), vertical height 17.9” (454.7mm), and weight 28.0 lbs. (12.7 kg).
Additional Details
| Ships From: | La Vergne, TN, USA |
| Manufacturer: | Elation Professional |
| Condition: | Good |
| Model: | DAR880 |
| Item #: | 62159 | Brokered |
| Tags: | Moving lights, Leds, Led moving lights, Elation |
- Compact Precise 360° Pan/Tilt Moving Beam Luminaire
- No Minimum Safe Project Distance Like Discharge Fixtures
- 3° Sharp Aperture with Motorized Focus
- Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
- 14 Static-Stamped Metal Gobos
- 6 Linear and 8 Facet Independent Rotating Prisms
- 0-100% Linear Frost Filter for Wash Effects
- High Speed Electronic Shutter and Strobe
- Electronic Dimming and Variable Dimming Curve Modes
- DMX, RDM, Kling-Net, Art-NET, and sACN Protocol Support
- Elation’s E-FLY Internal Wireless DMX Transceiver
- Adjustable Refresh Rate Frequency and Gamma Brightness
- Flicker Free Operation for TV and FILM
- Length: 11.2” (284.15mm)
- Width: 7.7” (195.97mm)
- Vertical Height: 17.9” (454.7mm)
- Weight: 28.0 lbs. (12.7 kg)
- (1) Dartz 360
- (2) Omega Bracket
