Obsidian NX1 Console Package

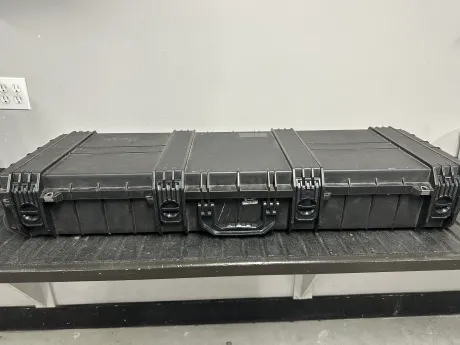

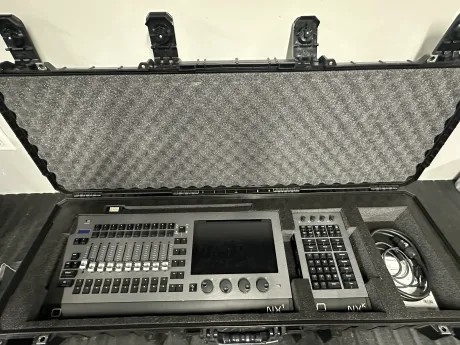

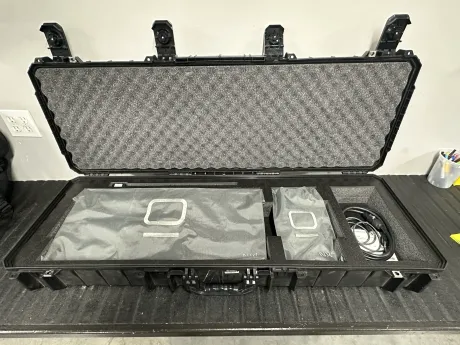

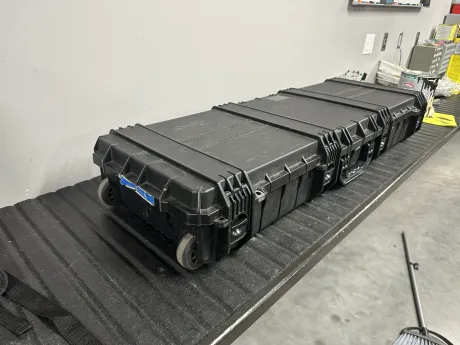

This listing is for a Obsidian NX1 Console Package. These items show signs of wear, but have been well maintained and are in good working condition.

The Obsidian NX1 is a portable, compact lighting console built for the ONYX platform, giving you a fully featured controller in an ultra-compact footprint. It is designed for programmers and operators who want the complete ONYX experience for live events, touring, and installed venues, with hands-on playback control, fast start-up, and flexible network and DMX connectivity.

ONYX control in a compact console

Utilizing the full ONYX Operating System the NX1 includes a high-brightness 10.1" HD multi-touch screen; 4 assignable parameter encoders; 10 full motorized playbacks with four freely assignable buttons plus and extra playback and function key hybrid array. A dedicated Master Go section rounds out the efficient front panel design.

Fast internal processing, no external PC required

Including the latest in industrial components the NX1 contains a powerful new Intel processor, high speed NVMe SSD drive and 8GB of DDR4 RAM, allowing fast boot times, instant operation and the ability to process 8 Universes right inside the console. This configuration is well suited for shows that need responsive programming, reliable operation, and quick power-up in time-sensitive environments.

Connectivity for DMX and networked lighting

With four DMX ports, a Gigabit network port for up to 8 Universes of Art-Net, sACN plus the ONYX X-Net protocol the NX 1 has ample connectivity and power for a wide variety of shows and applications. One additional touch monitor is supported for even more direct access at anytime, making it easy to expand your workspace for layouts, palettes, and playback views.

Expandable ONYX platform workflow

The NX1 is further expandable with the dedicated NXK keypad and the NXP motorized playback wing. A simple magnetic alignment system allows attachment on either side of the NX1. The keypad and playback wing are part of the ONYX platform and can be utilized with all other NX devices or ONYX on any PC system.

Hardware highlights and I/O

• ONYX Essential License (8 Universes)
• 10 motorized playbacks, 10 playback/function hybrids, 4 encoders, Master Go section with Go, Pause, Snap and Release
• Industrial 10.1" TFT 16:9 touchscreen (1920x1200px), supports 1x external display via HDMI
• 250 GB NVMe M.2 storage drive, Intel CPU, 8 GB DDR4 RAM, integrated graphics processor
• Windows 10 IoT Embedded Operating System, supports Windows USB touchscreens
• 4x DMX/RDM Universe In/Out (5-pin locking XLR), 1x Gigabit RJ45 for Art-Net, sACN and ONYX X-Net
• USB: 4x USB 3.0, 1x USB 2.0; audio out and mic in (3.5mm)
• IP65 locking power in, 100-240V 50/60 Hz, 104W
• Dimensions: 298.5 mm (L) x 636 mm (W) x 71 mm (H); weight: 8.1kg (17.8 lbs.)
